Typ | Preis | |

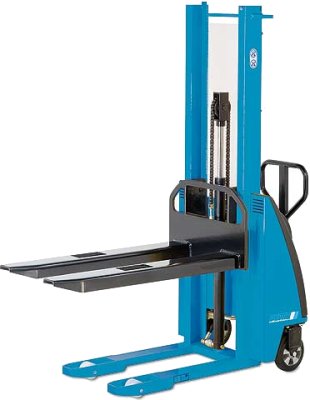

Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1009 | Tragkraft 1000 kg max. Hub 810 mm, Lastschwerpunkt 600 mm | 3.374,36 EUR |
Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1016 | Tragkraft 1000 kg max. Hub 1510 mm, Lastschwerpunkt 600 mm | 3.385,80 EUR |
Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1020 | Tragkraft 1000 kg max. Hub 2910 mm, Lastschwerpunkt 600 mm | 0,00 EUR |
Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1225 | Tragkraft 1200 kg max. Hub 2410 mm, Lastschwerpunkt 600 mm | 4.765,20 EUR |
Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1229 | Tragkraft 1200 kg max. Hub 2810 mm, Lastschwerpunkt 600 mm | 5.163,40 EUR |
Hand-Gabelhubwagen mit elektrohydr. Hub, handverfahrbar Modell EHH PS 1235 | Tragkraft 1200 kg max. Hub 3410 mm, Lastschwerpunkt 600 mm | 5.563,58 EUR |
Typ | EHH PS 1009 |
EHH PS 1016 |
EHH PS 1020 |
EHH PS 1225 |
EHH PS 1229 |
EHH PS 1235 |

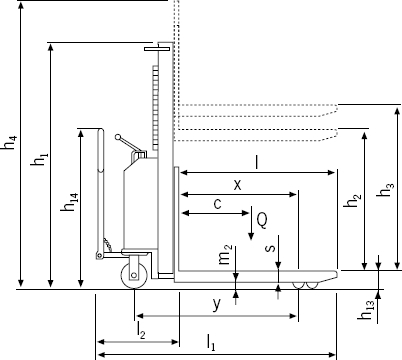

Tragfähigkeit (bis 2,5 m Hub) | kg | 1.000 | 1.000 | 1.000 | 1.200 | 1.200 | 1.200 |
Lastschwerpunkt c | mm | 600 | 600 | 600 | 600 | 600 | 600 |
Radstand y | mm | 965 | 965 | 965 | 1.155 | 1.155 | 1.155 |
Gewicht (mit Batterie) | kg | 296 | 311 | 321 | 433 | 449 | 496 |
Bereifung* | VG/PA | VG/PA | VG/PA | PUR/PA | PUR/PA | PUR/PA | |
Lenkrollen l x d | mm | 200 x 50 | 200 x 50 | 200 x 50 | 200 x 50 | 200 x 50 | 200 x 50 |
Lastrollen l x d | mm | 82 x 70 | 82 x 70 | 82 x 70 | 82 x 70 | 82 x 70 | 82 x 70 |
Anzahl Räder/Lastrollen (x=angetr.) | 2/2 | 2/3 | 2/4 | 2/5 | 2/6 | 2/7 | |
Höhe Hubgerüst eingefahren h1 | mm | 1.300 | 1.970 | 2.370 | 1.780 | 1.980 | 2.250 |
Freihub h2 | mm | 810 | 1.510 | 1.910 | - | - | 80 |
Hub | mm | 810 | 1.510 | 2.910 | 2.410 | 2.810 | 3.410 |
Höhe Hubgerüst ausgfahren h4 | mm | 1.300 | 1.970 | 2.370 | 2.985 | 3.385 | 3.915 |
Gabelhöhe max. h3+h13 | mm | 900 | 1.600 | 2.000 | 2.500 | 2.900 | 3.500 |
Gabelhöhe gesenkt h13 | mm | 90 | 90 | 90 | 90 | 90 | 90 |
Gesamtlänge l1 | mm | 1.750 | 1.750 | 1.750 | 1.850 | 1.850 | 1.850 |
Vorbaulänge einschl. Gabelrücken l2 | mm | 600 | 600 | 600 | 700 | 700 | 700 |
Gesamtbreite b1/b2 | mm | 750 | 750 | 750 | 850 | 850 | 850 |
Gabeldicke s | mm | 70 | 70 | 70 | 70 | 70 | 70 |
Gabelbreite e | mm | 150 | 150 | 150 | 150 | 150 | 150 |
Gabelzinkenlänge l | mm | 1.150 | 1.150 | 1.150 | 1.150 | 1.150 | 1.150 |
Gabelaußenabstand b5 | mm | 560 | 560 | 560 | 560 | 560 | 560 |
Bodenfreiheit | mm | 20 | 20 | 20 | 20 | 20 | 20 |

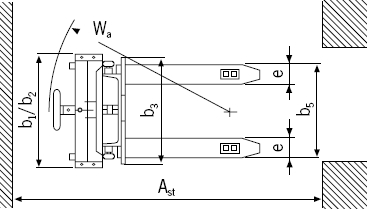

Arbeitsgangbreite bei Palette Ast | mm | 2.210 | 2.210 | 2.210 | 2.375 | 2.375 | 2.375 |
Wenderadius Wa | mm | 1.440 | 1.440 | 1.440 | 1.760 | 1.760 | 1.760 |
Hubgeschwindigkeit mit/ohne Last | m/s | 0,09/0,12 | 0,09/0,12 | 0,09/0,12 | 0,08/0,12 | 0,08/0,12 | 0,08/0,12 |
Senkgeschwindigkeit mit/ohne Last | m/s | 0,4/0,1 | 0,4/0,1 | 0,4/0,1 | 0,4/0,1 | 0,4/0,1 | 0,4/0,1 |
Hubmotor, Leistung | kW | 1,6 | 1,6 | 1,6 | 2,2 | 2,2 | 2,2 |
Batterie nach DIN 43531 | Starter | Starter | Starter | Starter | Starter | Starter | |
Batterieladegerät | V/A | 12-15 | 12-15 | 12-15 | 24-13 | 24-13 | 24-13 |
Batteriespannung Nennkapazität | V/Ah | 12/74 | 12/74 | 12/74 | 24/74 | 24/74 | 24/74 |
Artikel-Nr. | 40046051 | 40044422 | 40044423 | 40044424 | 40044425 | 40044426 | |
Preis** | EUR | 3.374,36 | 3.385,80 | 0,00 | 4.765,20 | 5.163,40 | 5.563,58 |
* PA...Polyamid, PUR...Polyurethan-Rollen, VG...Vollgummi Rollen |
