Typ | Gewinde d x e |
Anzieh- drehmoment |
Steigung DIN 13 |
øb | g | SW | t | Glied ø x t1 x bi |
Ge- wicht |
Artikel-Nr. | Preis |
mm | Nm | mm | mm | mm | mm | mm | ˜ kg | EUR |
TP 0,7 | M 10x18 | 10 - 40 | 1,5 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,42 | 0381400001 | 48,07 |
M 12x18 | 15 - 40 | 1,75 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,43 | 0381400000 | 50,27 | |
M 12x25 | 15 - 40 | 1,75 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,43 | 0381400002 | 52,80 | |
M 14x20 | 30 - 40 | 2 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,43 | 0381400003 | 59,18 | |
TP 1,4 | M 16x20 | 45 - 130 | 2 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,44 | 0381401000 | 52,47 |
M 16x30 | 45 - 130 | 2 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,45 | 0381401001 | 54,23 | |
M 20x30 | 75 - 130 | 2,5 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,48 | 0381401002 | 61,16 | |
M 24x30 | 90 - 130 | 3 | 36,5 | 48 | 34 | 41 | 13x55x32 | 0,50 | 0381401003 | 63,58 | |
TP 2,5 | M 20x30 | 100 - 170 | 2,5 | 52 | 68 | 46 | 57 | 16x70x34 | 0,95 | 0381402000 | 62,04 |
M 20x40 | 100 - 170 | 2,5 | 52 | 68 | 46 | 57 | 16x70x34 | 0,97 | 0381402001 | 74,36 | |
M 20x50 | 100 - 170 | 2,5 | 52 | 68 | 46 | 57 | 16x70x34 | 0,99 | 0381402002 | 76,45 | |
M 20x70 | 100 - 170 | 2,5 | 52 | 68 | 46 | 57 | 16x70x34 | 1,05 | 0381402003 | 77,00 | |
TP 4 | M 24x30 | 190 - 280 | 3 | 57 | 75 | 50 | 63 | 18x85x45 | 1,36 | 0381404000 | 82,61 |
M 24x45 | 190 - 280 | 3 | 57 | 75 | 50 | 63 | 18x85x45 | 1,41 | 0381404001 | 93,28 | |
M 24x50 | 190 - 280 | 3 | 57 | 75 | 50 | 63 | 18x85x45 | 1,42 | 0381404002 | 100,32 | |
M 30x35 | 190 - 280 | 3,5 | 57 | 75 | 50 | 63 | 18x85x45 | 1,45 | 0381404003 | 119,02 | |
TP 6,7 | M 30x35 | 230 - 400 | 3,5 | 70 | 95 | 65 | 78 | 20x85x45 | 2,33 | 0381406000 | 97,02 |
M 30x45 | 230 - 400 | 3,5 | 70 | 95 | 65 | 78 | 20x85x45 | 2,37 | 0381406001 | 104,39 | |
M 30x50 | 230 - 400 | 3,5 | 70 | 95 | 65 | 78 | 20x85x45 | 2,40 | 0381406002 | 108,79 | |
M 30x60 | 230 - 400 | 3,5 | 70 | 95 | 65 | 78 | 20x85x45 | 2,45 | 0381406003 | 157,85 | |
TP 8 | M 30x35 | 270 - 600 | 3,5 | 81 | 106 | 75 | 86 | 23x115x60 | 3,59 | 0381408000 | 140,47 |
M 30x45 | 270 - 600 | 3,5 | 81 | 106 | 75 | 86 | 23x115x60 | 3,64 | 0381408001 | 141,57 | |
TP 10 | M 36x50 | 270 - 600 | 4 | 81 | 106 | 75 | 86 | 23x115x60 | 3,72 | 0381410000 | 142,12 |
M 36x54 | 270 - 600 | 4 | 81 | 106 | 75 | 86 | 23x115x60 | 3,75 | 0381410001 | 144,32 | |
TP 12,5 | M 42x50 | 270 - 700 | 4,5 | 81 | 106 | 75 | 86 | 23x115x60 | 3,82 | 0381412003 | 210,98 |
M 42x60 | 270 - 700 | 4,5 | 81 | 106 | 75 | 86 | 23x115x60 | 3,91 | 0381412002 | 212,30 | |
M 42x63 | 270 - 700 | 4,5 | 81 | 106 | 75 | 86 | 23x115x60 | 3,94 | 0381412000 | 215,38 | |
M 45x60 | 270 - 700 | 4,5 | 81 | 106 | 75 | 86 | 23x115x60 | 4,03 | 0381412013 | 290,62 | |
M 48x72 | 270 - 700 | 5 | 81 | 106 | 75 | 86 | 23x115x60 | 4,23 | 0381412001 | 252,01 | |
TP 17 | M 42x60 | 350 - 800 | 4,5 | 104 | 127 | 95 | 106 | 30x140x70 | 7,34 | 0381417003 | 355,96 |
M 45x60 | 350 - 800 | 4,5 | 104 | 127 | 95 | 106 | 30x140x70 | 7,50 | 0381417000 | 391,60 | |
M 48x60 | 350 - 800 | 5 | 104 | 127 | 95 | 106 | 30x140x70 | 7,57 | 0381417001 | 461,12 | |
M 56x78 | 350 - 900 | 5,5 | 104 | 127 | 95 | 106 | 30x140x70 | 8,00 | 0381417002 | 471,79 | |
TP 20 | M 64x96 | 350 - 900 | 6 | 104 | 127 | 95 | 106 | 30x140x70 | 8,85 | 0381420000 | 555,83 |
M 64x110 | 350 - 900 | 6 | 104 | 127 | 95 | 106 | 30x140x70 | 9,20 | 0381420001 | 574,75 |
Typ | Preis | |
THEIPA Point 0,7 Gewindeausführung: M 10 x 18 mm | Gewicht 0.42 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 1t, 90° = 0,5t | 48,07 EUR |
THEIPA Point 0,7 Gewindeausführung: M 12 x 18 mm | Gewicht 0.43 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 1,4t, 90° = 0,7t | 50,27 EUR |
THEIPA Point 0,7 Gewindeausführung: M 12 x 25 mm | Gewicht 0.43 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 1,4t, 90° = 0,7t | 52,80 EUR |
THEIPA Point 0,7 Gewindeausführung: M 14 x 20 mm | Gewicht 0.43 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 2t, 90° = 1t | 59,18 EUR |
THEIPA Point 1,4 Gewindeausführung: M 16 x 20 mm | Gewicht 0.44 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 2,8t, 90° = 1,4t | 52,47 EUR |
THEIPA Point 1,4 Gewindeausführung: M 16 x 30 mm | Gewicht 0.45 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 2,8t, 90° = 1,4t | 54,23 EUR |
THEIPA Point 1,4 Gewindeausführung: M 20 x 30 mm | Gewicht 0.48 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 3,4t, 90° = 1,7t | 61,16 EUR |
THEIPA Point 1,4 Gewindeausführung: M 24 x 30 mm | Gewicht 0.50 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 3,4t, 90° = 1,7t | 63,58 EUR |
THEIPA Point 2,5 Gewindeausführung: M 20 x 30 mm | Gewicht 0.95 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 5t, 90° = 2,5t | 62,04 EUR |
THEIPA Point 2,5 Gewindeausführung: M 20 x 40 mm | Gewicht 0.97 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 5t, 90° = 2,5t | 74,36 EUR |
THEIPA Point 2,5 Gewindeausführung: M 20 x 50 mm | Gewicht 0.99 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 5t, 90° = 2,5t | 76,45 EUR |
THEIPA Point 2,5 Gewindeausführung: M 20 x 70 mm | Gewicht 1.05 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 5t, 90° = 2,5t | 77,00 EUR |
THEIPA Point 4 Gewindeausführung: M 24 x 30 mm | Gewicht 1.36 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 8t, 90° = 4t | 82,61 EUR |
THEIPA Point 4 Gewindeausführung: M 24 x 45 mm | Gewicht 1.41 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 8t, 90° = 4t | 93,28 EUR |
THEIPA Point 4 Gewindeausführung: M 24 x 50 mm | Gewicht 1.42 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 8t, 90° = 4t | 100,32 EUR |
THEIPA Point 4 Gewindeausführung: M 30 x 35 mm | Gewicht 1.45 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 8t, 90° = 4t | 119,02 EUR |
THEIPA Point 6,7 Gewindeausführung: M 30 x 35 mm | Gewicht 2.33 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 6,7t | 97,02 EUR |
THEIPA Point 6,7 Gewindeausführung: M 30 x 45 mm | Gewicht 2.37 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 6,7t | 104,39 EUR |
THEIPA Point 6,7 Gewindeausführung: M 30 x 50 mm | Gewicht 2.40 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 6,7t | 108,79 EUR |
THEIPA Point 6,7 Gewindeausführung: M 30 x 60 mm | Gewicht 2.45 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 6,7t | 157,85 EUR |
THEIPA Point 8 Gewindeausführung: M 30 x 35 mm | Gewicht 3.59 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 8t | 140,47 EUR |
THEIPA Point 8 Gewindeausführung: M 30 x 45 mm | Gewicht 3.64 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 12t, 90° = 8t | 141,57 EUR |
THEIPA Point 10 Gewindeausführung: M 36 x 50 mm | Gewicht 3.72 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 10t | 142,12 EUR |
THEIPA Point 10 Gewindeausführung: M 36 x 54 mm | Gewicht 3.75 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 10t | 144,32 EUR |
THEIPA Point 12,5 Gewindeausführung: M 42 x 50 mm | Gewicht 3.82 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 12,5t | 210,98 EUR |
THEIPA Point 12,5 Gewindeausführung: M 42 x 60 mm | Gewicht 3.91 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 12,5t | 212,30 EUR |
THEIPA Point 12,5 Gewindeausführung: M 42 x 63 mm | Gewicht 3.94 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 12,5t | 215,38 EUR |
THEIPA Point 12,5 Gewindeausführung: M 45 x 60 mm | Gewicht 4.03 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 12,5t | 290,62 EUR |
THEIPA Point 12,5 Gewindeausführung: M 48 x 72 mm | Gewicht 4.23 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 15t, 90° = 12,5t | 252,01 EUR |
THEIPA Point 17 Gewindeausführung: M 42 x 60 mm | Gewicht 7.34 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 20t, 90° = 13t | 355,96 EUR |
THEIPA Point 17 Gewindeausführung: M 45 x 60 mm | Gewicht 7.50 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 25t, 90° = 17t | 391,60 EUR |
THEIPA Point 17 Gewindeausführung: M 48 x 60 mm | Gewicht 7.57 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 25t, 90° = 17t | 461,12 EUR |
THEIPA Point 17 Gewindeausführung: M 56 x 78 mm | Gewicht 8.00 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 25t, 90° = 18t | 471,79 EUR |
THEIPA Point 20 Gewindeausführung: M 64 x 96 mm | Gewicht 8.85 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 25t, 90° = 20t | 555,83 EUR |
THEIPA Point 20 Gewindeausführung: M 64 x 110 mm | Gewicht 9.20 kg Tragfähigkeit bei einsträngiger Aufhängung: 0° = 25t, 90° = 20t | 574,75 EUR |
Anschlagart | 1-Strang | 2-Strang* | 3 oder 4-Strang* | ||||||
Typ | Gewinde | 0° | 90° | 0° | 90° | 0°-45° | 45°-60° | 0°-45° | 45°-60° |
TP 0,7 | M10 | 1 | 0,5 | 2 | 1 | 0,7 | 0,5 | 1 | 0,75 |
TP 0,7 | M12 | 1,4 | 0,7 | 2,8 | 1,4 | 1 | 0,7 | 1,4 | 1 |
TP 0,7 | M14 | 2 | 1 | 4,0 | 2 | 1,4 | 1 | 2,12 | 1,5 |
TP 1,4 | M16 | 2,8 | 1,4 | 5,6 | 2,8 | 2 | 1,4 | 3 | 2,12 |
TP 1,4 | M20 | 3,4 | 1,7 | 6,8 | 3,4 | 2,4 | 1,7 | 3,55 | 2,5 |
TP 1,4 | M24 | 3,4 | 1,7 | 6,8 | 3,4 | 2,4 | 1,7 | 3,55 | 2,5 |
TP 2,5 | M20 | 5 | 2,5 | 10,0 | 5 | 3,55 | 2,5 | 5,3 | 3,75 |
TP 4 | M24 | 8 | 4 | 16 | 8 | 5,6 | 4 | 8,5 | 6 |
TP 4 | M30 | 8 | 4 | 16 | 8 | 5,6 | 4 | 8,5 | 6 |
TP 6,7 | M30 | 12 | 6,7 | 24 | 13,4 | 9,5 | 6,7 | 14 | 10 |
TP 8 | M30 | 12 | 8 | 24 | 16 | 11,2 | 8 | 16 | 12 |
TP 10 | M36 | 15 | 10 | 30 | 20 | 14 | 10 | 21,2 | 15 |
TP 12,5 | M42 | 15 | 12,5 | 30 | 25 | 17 | 12,5 | 25 | 18 |
TP 12,5 | M45 | 15 | 12,5 | 30 | 25 | 17 | 12,5 | 25 | 18 |
TP 12,5 | M48 | 15 | 12,5 | 30 | 25 | 17 | 12,5 | 25 | 18 |
TP 17 | M42 | 20 | 13 | 40 | 26 | 18 | 13 | 27 | 19 |
TP 17 | M45 | 25 | 17 | 50 | 34 | 23,5 | 17 | 35 | 25 |
TP 17 | M48 | 25 | 17 | 50 | 34 | 23,5 | 17 | 35 | 25 |
TP 17 | M56 | 25 | 18 | 50 | 36 | 25 | 18 | 37,5 | 26,5 |
TP 20 | M64 | 25 | 20 | 50 | 40 | 28 | 20 | 40 | 30 |

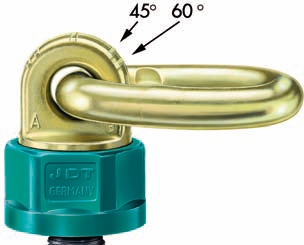

Eindeutige Anzeige der zulässigen Neigungswinkel in Verbindung mit Anschlagketten bzw. -seilen.

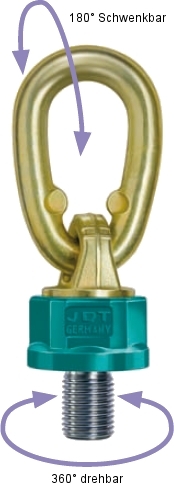

Zusätzliche Lagerung zum ruckfreien Drehen und Wenden auch unter Last.
